  Product Name:

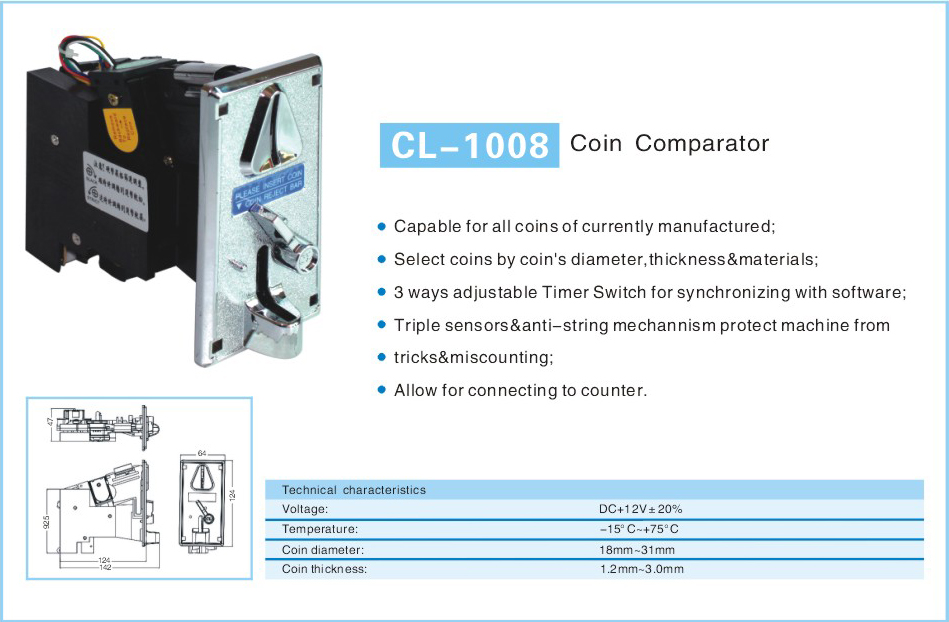

  Product model:  CL-1008
  Specifications:
  Category:  Coin Acceptor
  Time:  2012-03-13


  Description
1: CPU Electronic coin acceptor ,Drop Inserting Type.
2 Capable for accepting all worldwide Coins and Tokens.
3:Select coin by Diameter, Thickness and Metal Content.
4:CPU anti-string programs presetting against fraud.
5:Adjustable VR tunning for sensitivity of coin acceptance.
6: Allow to connect to Counter(Meter).

 Voltage : DC+12V
 Coin Diameter : 18mm~33mm
 Coin thickness : 1.2mm~3.3mm
USER GUIDE:
1.     Replace yellow plastic token to the correct coin as wish to accept in sampling clamp.
2.     Adjust entry slot opening to your coin size by loosening screw on the back of metal panel for blocking bigger invalid coin from inserting.
3.     Turn the screw on front lid in clockwise direction for ditching “thinner coin” through the slot of lid if necessary.
4.     switch to Normal Open (N.O.) or Normal close (N.C) for signal output of coin validation upon Host requested .
·                           Long duration of Pulse   :. 100ms
·                           Common duration of Pulse : 50ms
·                           Short duration of Pulse    :30ms
6.     VR tuning for tolerance of coin acceptance , turn clockwise for slack and anti-clockwise for precise acceptance.
7.     Shift sensitivity switch of coin acceptance downward to “special” to extend the range of discriminated ratio for twin metal coins or the coins in big tolerance.

After-sale service:
During one week after selling--- any problem with the quality can be changed without any charge.
widely use for many industries like vending machine, washing center, massage chair, game machine, cyber bar, parking center
Lead time:within 1-7 days after receiving your payment

Packaging Detail: 1PCS in one box,50PCS to one carton.
Package Size(L*W*H) :480*355*280mm
why you choose our CL:
 1. Quality guaranteed:Special supervision team to control quality.All the products will be inspected carefully before delivery.
2:Competitive price with high quality
3: Chilong has almost 20 years on producing the game machine spare parts! And also we have about 10 years experience on exporting!
