  Product Name:

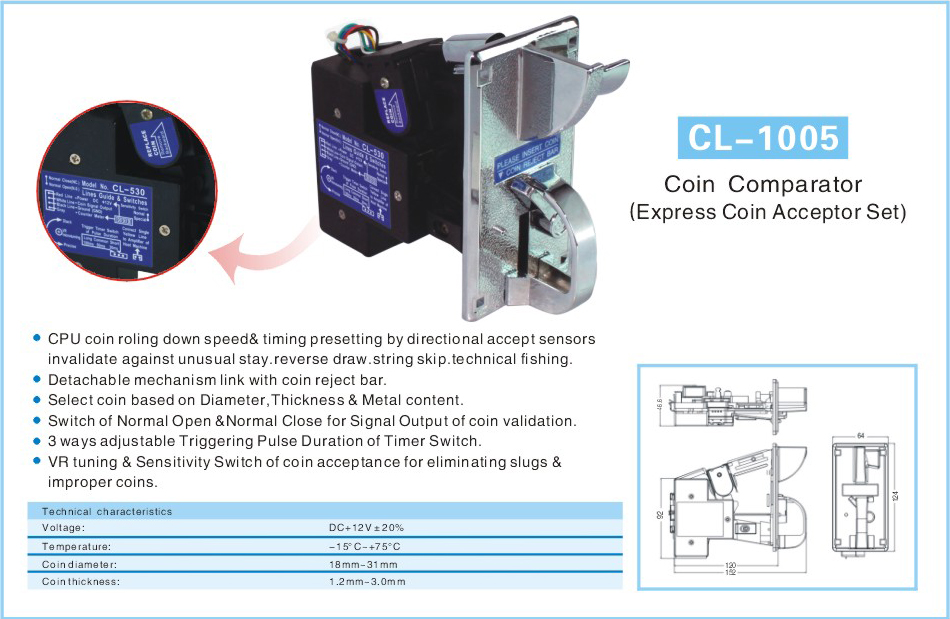

  Product model:  CL-1005
  Category:  Coin Acceptor
  Time:  2012-03-12
1:Top entry CPU coin selector ,Drop Inserting Type.
2: Capable for accepting all worldwide Coins and Tokens.
3:Select coin by Diameter, Thickness and Metal Content.
4:CPU anti-string programs presetting against fraud.
5:Adjustable VR tunning for sensitivity of coin acceptance.
6: Allow to connect to Counter(Meter).
 Voltage : DC+12V
 Coin Diameter : 18mm~33mm
 Coin thickness : 1.2mm~3.3mm
1. Replace yellow plastic token to the correct coin as wish to accept in sampling clamp.
2. Adjust diameter-rail of lid for preventing bigger invalid coins from inserting.
3. Drive screw of lid-wing if coin thickness more than 2.5mm.
4. Connect loom to host machine as following lines guide :
White line—(N.C. signal)
Green line—(N.O. signal)
Gray line—Counter (Meter)
Yellow line—inhibit/low(<+1V)
Red line—Power DC +12V
Black Line—Ground (GND)
5.      Switch Time Duration for correct triggering of coin acceptance if necessary .
Long duration of Pulse   :. 100ms
Common duration of Pulse : 50ms
Short duration of Pulse    :20ms
6. VR tunning for sensitivity of coin acceptance.
Turn clockwiste (+) for slack acceptance.
Turn anti-clockwise(-) for tight acceptance.
7:3 triggering TIMER SWITCH of Pulse Duration ,
After-sale service:
During one week after selling--- any problem with the quality can be changed without any charge.
widely use for many industries like vending machine, washing center, massage chair, game machine, cyber bar, parking center
Lead time:within 1-7 days after receiving your payment
Packaging Detail: 1PCS in one box,50PCS to one carton.
Package Size(L*W*H) : 350mm*330mm*380mm
why you choose our CL:
 1. Quality guaranteed:Special supervision team to control quality.All the products will be inspected carefully before delivery.
2:Competitive price with high quality
3: Chilong has almost 20 years on producing the game machine spare parts! And also we have about 10 years experience on exporting!
