Specifications:
1, could be set to identify 1-6 values of coins or tokens from different Countries or regions
2, easy and free setting per actual need
3, high accuracy, identify coin based on their value, material, thickness and diameter
4,CPU micro computer learning style ,could be set for all kinds of coin or token per requirement easily, just insert 20pcs each coin inside when setting, the system will learn and know each coin or token automatic. no need to clamp sample coin or token for sampling.
5, 30ms.50ms,100ms three pulse signal speed to choose, N.O and N.C switch to convert, suitable for many different industries.
6, OEM and ODM are available
Instruction of multi-coin microcomputer selector
The microcomputer slot instruction
1. We can change the SET anytime, and increase different coins and quantity.
2. While using 2 types of the same currency, 2 kinds of mixed sets, a single pulse.
3. If user input inappropriate coin or fake coin, the coin selector can be auto-training for User replenish the coin request.
4. Inhibit can control throws the coin temporarily to stop operation.
Characteristic of coin selector:
|
Suitable the coin diameter |
Suitable the coin thickness |
Power |
Electric current |
Temperature range |
Inhibit |
|
18mm~32mm |
1.4mm~3.5mm |
DC12V±20% |
40ma instantaneous 350ma |
-30 ºC ~80ºC |
>0.5V |
Slot function:
1. Make sure various switches in the normal position.

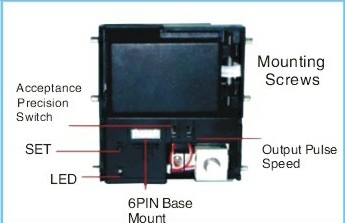

2. Push down SET approx. 3 sec., red LED can become slow blink（first paragraph）, push down SET approx. 3 sec. again , LED can become fast blink(second paragraph), and threw 20pcs of coins, and at the same time the LED keep lighted.(set completed)
3. If the coin is not smooth in used, we can increase to set the coins.
4.The increase to SET the coins:
Push down SET key approx. 3 sec., red LED can become slow blink (first paragraph), and threw all of increased coins , then push down SET again, and the LED stop to glittering.(Increase SET completed) (Increased coins can reach 50 pcs..)
After-sale service:
During one week after selling--- any problem with the quality can be changed without any charge.
widely use for many industries like vending machine, washing center, massage chair, game machine, cyber bar, parking center
Lead time:within 1-7 days after receiving your payment
Packaging Detail: 1PCS in one box,50PCS to one carton.
Package Size(L*W*H) : 56.5*26.5*28cm
why you choose our CL:
1. Quality guaranteed:Special supervision team to control quality.All the products will be inspected carefully before delivery.
2:Competitive price with high quality
3: Chilong has almost 20 years on producing the game machine spare parts! And also we have about 10 years experience on exporting!
|
